ComponentFactory.hpp File Reference

Factory for creating components from configuration. More...

#include <icarus/core/Component.hpp>
#include <icarus/core/ComponentConfig.hpp>
#include <icarus/core/Error.hpp>
#include <janus/core/JanusTypes.hpp>
#include <functional>
#include <memory>
#include <string>
#include <unordered_map>
#include <vector>

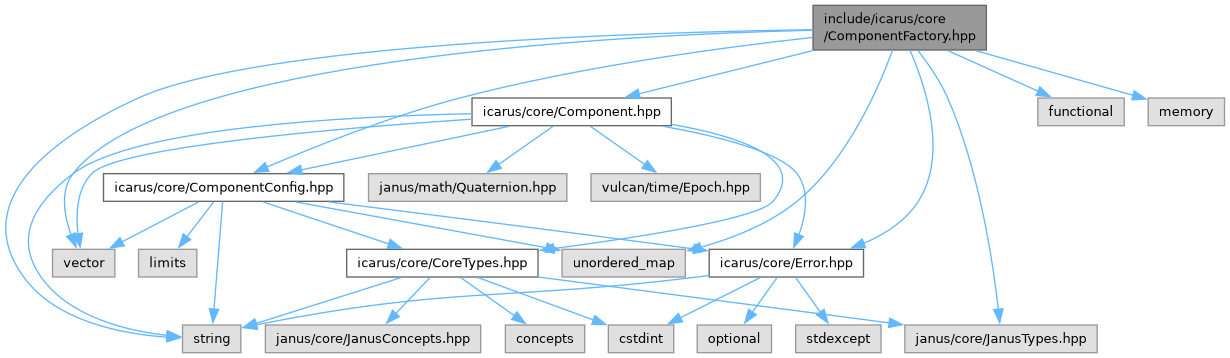

Include dependency graph for ComponentFactory.hpp:

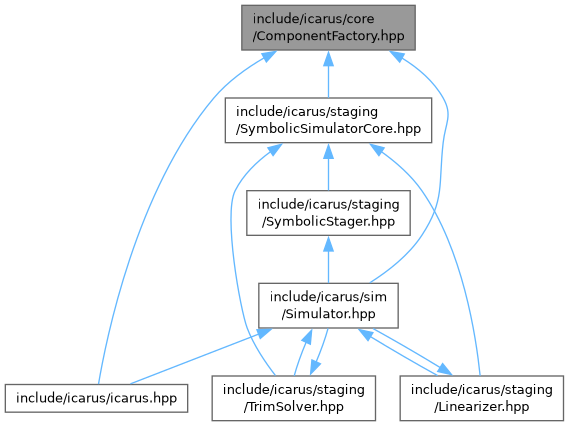

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	icarus::ComponentFactory< Scalar >
	Factory for creating components from configuration. More...

Namespaces
namespace	icarus

Macros
#define	ICARUS_REGISTER_COMPONENT(ComponentType)
	Register a component type with the factory (both backends).
#define	ICARUS_REGISTER_COMPONENT_IMPL2(ComponentType, TypeName, Counter)
	Register component with custom type name (both backends).
#define	ICARUS_REGISTER_COMPONENT_IMPL(ComponentType, TypeName, Counter)
#define	ICARUS_REGISTER_COMPONENT_AS(ComponentType, TypeName)
#define	ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL2(TypeName, CreatorLambda, Counter)
	Register component with custom creator function (numeric backend only).
#define	ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL(TypeName, CreatorLambda, Counter)
#define	ICARUS_REGISTER_COMPONENT_WITH_CREATOR(TypeName, CreatorLambda)

Detailed Description

Factory for creating components from configuration.

Part of Phase 4.0.7: Configuration Infrastructure. Provides a singleton factory with component registration.

Updated to pass full ComponentConfig to creators, enabling components to read their scalars, vectors, and other configuration values.

Macro Definition Documentation

ICARUS_REGISTER_COMPONENT

#define ICARUS_REGISTER_COMPONENT

(

ComponentType

)

Value:

    namespace {                                                                                    \
    static bool _reg_numeric_##ComponentType = []() {                                              \
        ::icarus::ComponentFactory<janus::NumericScalar>::Instance().Register(                     \
            #ComponentType, [](const ::icarus::ComponentConfig &config) {                          \
                auto comp = std::make_unique<ComponentType<janus::NumericScalar>>(config.name,     \
                                                                                  config.entity);  \
                comp->SetConfig(config);                                                           \
                return comp;                                                                       \
            });                                                                                    \
        return true;                                                                               \
    }();                                                                                           \
    static bool _reg_symbolic_##ComponentType = []() {                                             \
        ::icarus::ComponentFactory<janus::SymbolicScalar>::Instance().Register(                    \
            #ComponentType, [](const ::icarus::ComponentConfig &config) {                          \
                auto comp = std::make_unique<ComponentType<janus::SymbolicScalar>>(config.name,    \
                                                                                   config.entity); \
                comp->SetConfig(config);                                                           \
                return comp;                                                                       \
            });                                                                                    \
        return true;                                                                               \
    }();                                                                                           \
    }

Register a component type with the factory (both backends).

The component class must have a constructor that accepts (name, entity): ComponentType(std::string name, std::string entity)

The factory will call SetConfig() after construction. Components read their configuration in Stage() via GetConfig().

Registers with both janus::NumericScalar (double) and janus::SymbolicScalar (casadi::MX) backends for full dual-backend support.

Usage in component header or cpp file (namespace scope):

ICARUS_REGISTER_COMPONENT(PointMass3DOF)

ICARUS_REGISTER_COMPONENT_AS

#define ICARUS_REGISTER_COMPONENT_AS	(		ComponentType,
			TypeName )

Value:

    ICARUS_REGISTER_COMPONENT_IMPL(ComponentType, TypeName, __COUNTER__)

ICARUS_REGISTER_COMPONENT_IMPL

#define ICARUS_REGISTER_COMPONENT_IMPL	(		ComponentType,
			TypeName,
			Counter )

Value:

    ICARUS_REGISTER_COMPONENT_IMPL2(ComponentType, TypeName, Counter)

ICARUS_REGISTER_COMPONENT_IMPL2

#define ICARUS_REGISTER_COMPONENT_IMPL2	(		ComponentType,
			TypeName,
			Counter )

Value:

    namespace {                                                                                    \
    static const bool _icarus_reg_numeric_##Counter = []() {                                       \
        ::icarus::ComponentFactory<janus::NumericScalar>::Instance().Register(                     \
            TypeName, [](const ::icarus::ComponentConfig &config) {                                \
                auto comp = std::make_unique<ComponentType<janus::NumericScalar>>(config.name,     \
                                                                                  config.entity);  \
                comp->SetConfig(config);                                                           \
                return comp;                                                                       \
            });                                                                                    \
        return true;                                                                               \
    }();                                                                                           \
    static const bool _icarus_reg_symbolic_##Counter = []() {                                      \
        ::icarus::ComponentFactory<janus::SymbolicScalar>::Instance().Register(                    \
            TypeName, [](const ::icarus::ComponentConfig &config) {                                \
                auto comp = std::make_unique<ComponentType<janus::SymbolicScalar>>(config.name,    \
                                                                                   config.entity); \
                comp->SetConfig(config);                                                           \
                return comp;                                                                       \
            });                                                                                    \
        return true;                                                                               \
    }();                                                                                           \
    }

Register component with custom type name (both backends).

Registers with both janus::NumericScalar and janus::SymbolicScalar backends.

Usage (at namespace scope, inside the component's namespace):

ICARUS_REGISTER_COMPONENT_AS(PointMass3DOF, "PointMass3DOF")

ICARUS_REGISTER_COMPONENT_WITH_CREATOR

#define ICARUS_REGISTER_COMPONENT_WITH_CREATOR	(		TypeName,
			CreatorLambda )

Value:

    ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL(TypeName, CreatorLambda, __COUNTER__)

ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL

#define ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL	(		TypeName,
			CreatorLambda,
			Counter )

Value:

    ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL2(TypeName, CreatorLambda, Counter)

ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL2

#define ICARUS_REGISTER_COMPONENT_WITH_CREATOR_IMPL2	(		TypeName,
			CreatorLambda,
			Counter )

Value:

    namespace {                                                                                    \
    static bool _icarus_reg_creator_##Counter = []() {                                             \
        ::icarus::ComponentFactory<janus::NumericScalar>::Instance().Register(TypeName,            \
                                                                              CreatorLambda);      \
        return true;                                                                               \
    }();                                                                                           \
    }

Register component with custom creator function (numeric backend only).

Use when component needs special construction logic. The creator lambda is responsible for calling SetConfig() on the component.

Note: This macro only registers with janus::NumericScalar. For dual-backend support with custom creators, use the factory directly.

Usage:

ICARUS_REGISTER_COMPONENT_WITH_CREATOR("CustomType",
    [](const ComponentConfig& cfg) {
        auto comp = std::make_unique<CustomComponent<janus::NumericScalar>>(
            cfg.name, cfg.entity);
        comp->SetConfig(cfg);
        return comp;
    })
