WindTypes.hpp File Reference

#include <janus/janus.hpp>

Include dependency graph for WindTypes.hpp:

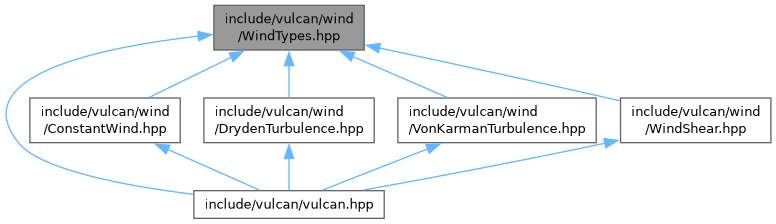

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	vulcan::wind::WindVector< Scalar >
	3D wind velocity in NED frame More...
struct	vulcan::wind::GustVelocity< Scalar >
	Turbulent gust velocities in body frame. More...
struct	vulcan::wind::GustAngularRate< Scalar >
	Angular gust rates in body frame. More...
struct	vulcan::wind::TurbulenceParams< Scalar >
	Turbulence intensity and scale parameters (MIL-F-8785C). More...

Namespaces
namespace	vulcan
namespace	vulcan::wind
namespace	vulcan::wind::detail

Enumerations
enum class	vulcan::wind::TurbulenceSeverity { vulcan::wind::Light , vulcan::wind::Moderate , vulcan::wind::Severe }
	Turbulence severity levels per MIL-HDBK-1797. More...

Functions
TurbulenceParams< double >	vulcan::wind::mil_spec_params (double altitude, TurbulenceSeverity severity)
	Compute MIL-spec turbulence parameters for given conditions.

Variables
constexpr double	vulcan::wind::detail::W20_LIGHT = 7.5
	Wind speed at 20 ft for different turbulence severities (MIL-HDBK-1797).
constexpr double	vulcan::wind::detail::W20_MODERATE = 15.0
constexpr double	vulcan::wind::detail::W20_SEVERE = 30.0
