hermes.core.process.ProcessManager Class Reference

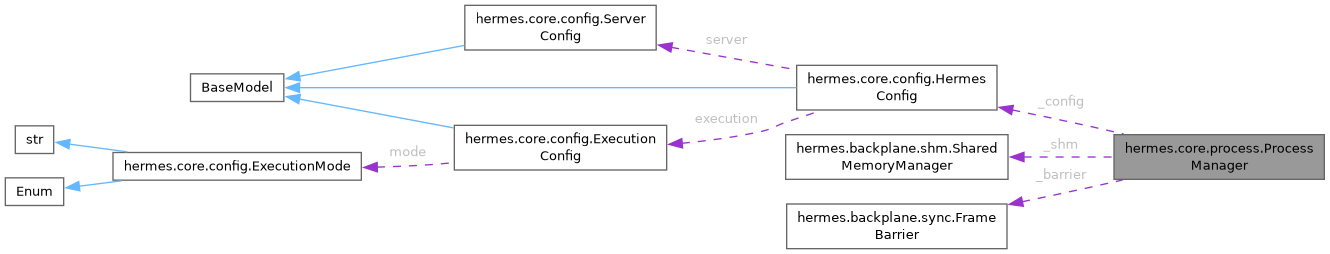

Collaboration diagram for hermes.core.process.ProcessManager:

Public Member Functions
None	__init__ (self, HermesConfig config)
HermesConfig	config (self)
SharedMemoryManager|None	shm (self)
dict[str, ModuleProcess]	modules (self)
dict[str, InprocModule]	inproc_modules (self)
None	initialize (self)
None	load_all (self)
None	stage_all (self)
None	step_all (self, float timeout=30.0)
None	reset_all (self)
None	update_time (self, int frame, int time_ns)
None	terminate_all (self)
ModuleProcess|None	get_module (self, str name)
InprocModule|None	get_inproc_module (self, str name)
InprocModuleProtocol|None	get_module_instance (self, str name)
ProcessManager	__enter__ (self)
None	__exit__ (self, *object args)

Protected Attributes
HermesConfig	_config = config
SharedMemoryManager|None	_shm = None
FrameBarrier|None	_barrier = None
dict	_modules = {}
dict	_inproc_modules = {}
str	_shm_name = f"/hermes_{os.getpid()}"
str	_barrier_name = f"/hermes_barrier_{os.getpid()}"

Detailed Description

Coordinates all module processes.

Manages the lifecycle of multiple module processes, including
shared memory setup, synchronization, and orderly shutdown.
Supports both subprocess (process/script) and in-process (inproc) modules.

Constructor & Destructor Documentation

__init__()

None hermes.core.process.ProcessManager.__init__	(		self,
		HermesConfig	config )

Initialize process manager.

Args:
    config: Hermes configuration

Member Function Documentation

__enter__()

ProcessManager hermes.core.process.ProcessManager.__enter__

(

self

)

Context manager entry - initialize resources.

__exit__()

None hermes.core.process.ProcessManager.__exit__	(		self,
		*object	args )

Context manager exit - clean up resources.

config()

HermesConfig hermes.core.process.ProcessManager.config

(

self

)

Hermes configuration.

get_inproc_module()

InprocModule | None hermes.core.process.ProcessManager.get_inproc_module	(		self,
		str	name )

Get an in-process module by name.

get_module()

ModuleProcess | None hermes.core.process.ProcessManager.get_module	(		self,
		str	name )

Get a subprocess module by name.

get_module_instance()

InprocModuleProtocol | None hermes.core.process.ProcessManager.get_module_instance	(		self,
		str	name )

Get module instance by name for in-process modules.

initialize()

None hermes.core.process.ProcessManager.initialize

(

self

)

Create shared resources and load all modules.

This sets up:
1. Shared memory segment with all signals
2. Synchronization barrier (for subprocess modules)
3. Module processes / in-process modules

If any step fails, previously created resources are cleaned up.

inproc_modules()

dict[str, InprocModule] hermes.core.process.ProcessManager.inproc_modules

(

self

)

Loaded in-process modules.

load_all()

None hermes.core.process.ProcessManager.load_all

(

self

)

Start all subprocess module processes.

modules()

dict[str, ModuleProcess] hermes.core.process.ProcessManager.modules

(

self

)

Loaded subprocess modules.

reset_all()

None hermes.core.process.ProcessManager.reset_all

(

self

)

Reset all modules to initial state and re-stage them.

Calls reset() on each inproc module, which restores initial
conditions and resets signal values. Modules are then re-staged
so they are ready for execution.

Raises:
    ProcessError: If subprocess modules are present, since they
        cannot be reset without pipe IPC (not yet implemented).

shm()

SharedMemoryManager | None hermes.core.process.ProcessManager.shm

(

self

)

Shared memory manager.

stage_all()

None hermes.core.process.ProcessManager.stage_all

(

self

)

Stage all modules for execution.

step_all()

None hermes.core.process.ProcessManager.step_all	(		self,
		float	timeout = 30.0 )

Execute one simulation frame across all modules.

For subprocess modules, uses barrier synchronization.
For inproc modules, calls step() directly in execution order.

Args:
    timeout: Maximum seconds to wait for subprocess modules

Raises:
    ProcessError: If not initialized
    TimeoutError: If subprocess modules don't complete within timeout

terminate_all()

None hermes.core.process.ProcessManager.terminate_all

(

self

)

Gracefully terminate all modules.

update_time()

None hermes.core.process.ProcessManager.update_time	(		self,
		int	frame,
		int	time_ns )

Update frame number and simulation time in shared memory.

Args:
    frame: Current frame number
    time_ns: Current simulation time in nanoseconds

Member Data Documentation

_barrier

FrameBarrier | None hermes.core.process.ProcessManager._barrier = None

protected

_barrier_name

str hermes.core.process.ProcessManager._barrier_name = f"/hermes_barrier_{os.getpid()}"

protected

_config

HermesConfig hermes.core.process.ProcessManager._config = config

protected

_inproc_modules

dict hermes.core.process.ProcessManager._inproc_modules = {}

protected

_modules

dict hermes.core.process.ProcessManager._modules = {}

protected

_shm

hermes.core.process.ProcessManager._shm = None

protected

_shm_name

str hermes.core.process.ProcessManager._shm_name = f"/hermes_{os.getpid()}"

protected

---

The documentation for this class was generated from the following file:

• src/hermes/core/process.py
