hermes.core.config.ExecutionConfig Class Reference

Inheritance diagram for hermes.core.config.ExecutionConfig:

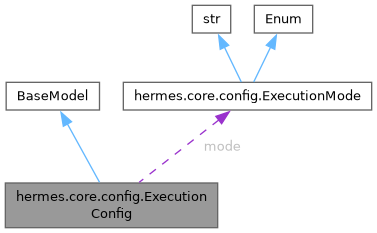

Collaboration diagram for hermes.core.config.ExecutionConfig:

Public Member Functions
float	get_major_frame_rate_hz (self)
int	get_dt_ns (self)
int|None	get_end_time_ns (self)

Static Public Attributes
ExecutionMode	mode = ExecutionMode.AFAP
float	rate_hz = 100.0
float	end_time = None
list	schedule = Field(default_factory=list)

Protected Member Functions
float	_validate_rate_hz (cls, float v)
ExecutionConfig	_validate_multi_rate (self)

Detailed Description

Execution and scheduling settings.

Time values are stored as floats for configuration convenience, but
converted to integer nanoseconds at runtime for determinism.

Any positive rate_hz is allowed. Rates that don't divide evenly into
1 billion nanoseconds (e.g., 600 Hz) will have their timestep rounded,
introducing bounded error that does not accumulate over time.

Member Function Documentation

_validate_multi_rate()

ExecutionConfig hermes.core.config.ExecutionConfig._validate_multi_rate ( self )

protected

Validate that module rates are integer multiples of major frame rate.

_validate_rate_hz()

float hermes.core.config.ExecutionConfig._validate_rate_hz ( cls, float v )

protected

Validate that rate_hz is positive.

get_dt_ns()

int hermes.core.config.ExecutionConfig.get_dt_ns

(

self

)

Get major frame timestep in nanoseconds.

Returns:
    Timestep as integer nanoseconds for deterministic simulation.
    Rounded to nearest nanosecond for rates that don't divide evenly.

get_end_time_ns()

int | None hermes.core.config.ExecutionConfig.get_end_time_ns

(

self

)

Get end time in nanoseconds.

Returns:
    End time as integer nanoseconds, or None if no end time set.

get_major_frame_rate_hz()

float hermes.core.config.ExecutionConfig.get_major_frame_rate_hz

(

self

)

Get major frame rate (slowest module rate).

Returns the minimum rate across all schedule entries. If no schedule
or no entries have explicit rates, returns execution rate_hz.

Member Data Documentation

end_time

float hermes.core.config.ExecutionConfig.end_time = None

static

mode

ExecutionMode hermes.core.config.ExecutionConfig.mode = ExecutionMode.AFAP

static

rate_hz

float hermes.core.config.ExecutionConfig.rate_hz = 100.0

static

schedule

list hermes.core.config.ExecutionConfig.schedule = Field(default_factory=list)

static

---

The documentation for this class was generated from the following file:

• src/hermes/core/config.py
